Get your SubZero Parts below:

click here to order your SubZero Switches Now!
Switches
click here to order your SubZero Evaporators Now!
Evaporators
On Sale!
click here to order your SubZero Heat Exchangers Now!
Heat Exchangers
NOW Available!
click here to order your SubZero Compressors Now!
Compressors
NOW Available!

Model#:

Part#

Condenser Fan Motors

Condenser Fan Blades

4200740
Condenser Fan Motor
2W 115V
Shaft Length: ½"
Shaft Diameter: ¼" Threaded
RPM: 1550
Hertz: 50/60Hz
Amps: .28A
Voltage: 120V
Watts: 2W
Rotation: CWOSE

4200740
200/300 Series, 3211, 424, 424-2, 427/427-2, 427R/427R-2, 430/430-2, 500 Series, 501, 501F, 532, 561, 600-2, 600-3, 601R, 601F, 611, 611G, 632/642, 648PRO, 650, 650G, 680/690, 700 Series, 700-2, 700-3, 700BC-3, 700BR-3, 700BF-3, 700TF/I-V2, 700TF/I-3V, 736TC/I, 736TF, 736TR, BI-SERIES, 801
New Condenser Fan Motor Replacement
Most Common on older units
Blade & Bracket NOT INCLUDED
Use this Pt# 4200740 Condenser Fan Motor for:
Find your Model# below and Verify Usage per Serial#
200/300 Series & 3211, 3211RFD
Use Regardless of Serial Number
424
Use Pt# 7016362
424-2
Use Pt# 7026641
UC-24
Use Pt# 7026641
427/427-2
Use Regardless of Serial Number
427R/427R-2
Use Regardless of Serial Number
430/430-2
Use Starting With Serial #1931384
Prior to Serial#1931384
Use Pt# 4200741
500 Series, 501, 501F, 532 (EXCEPT 561)
Use Regardless of Serial Number
561
Use Prior to Serial #1810000 & Start-
ing w/Serial #M1914144/P1919759
From Serial #1810000 to #M1914144/P1919759,
Use Pt# 4200741
600 Series NOTE:
For all 600 Series
Starting with Serial# 1810000
ALSO ORDER 7014653 Fan Blade
Use the New "Quieting" Fan Blade Pt# Q2190685,
if the fan air movement is too noisey or loud
600-2 Series
Use Regardless of Serial Number
600-3
Use Regardless of Serial Number
601R
Use Regardless of Serial Number
601F
Use Regardless of Serial Number
611
Use Regardless of Serial Number
611G
Use Regardless of Serial Number
632/642
Use Prior to Serial #1810000 & Start-
ing w/Serial #M1914144/P1919759
From Serial #1810000 to #M1914144/P1919759,
Use Pt# 4200741
648PRO
Use Pt# 7025930
650
Use Regardless of Serial Number
650G
Use Regardless of Serial Number
680/690
Use Prior to Serial #1810000 & Start-
ing w/Serial #M1914144/P1919759
From Serial #1810000 to #M1914144/P1919759,
Use Pt# 4200741
700 Series
Use Regardless of Serial Number
700-2 Series
(EXCEPT 700TF/I-2V)
Use Regardless of Serial Number
700-3 Series
(Except 736TC/I-3, 736TR-3, 700BC-3,
700BR-3, 700BF-3)
Use Regardless of Serial Number
Also Order 7014653 Fan Blade
700BC-3
Use Pt# 7029366
700BR-3
Use Pt# 7029366
700BF-3
Use Pt# 7029366
700TF/I-2V
Use Pt# 4203780
700TF/I-3V
Use Regardless of Serial Number
Also Order 7014653 Fan Blade
736TC/I
Starting With #2970000
Use Pt# 7025930
Prior to #2970000
Use Pt# 7006413
736TF
Starting With #2970000
Use Pt# 7025930
Prior to #2970000
Use Pt# 7006413
736TR
Starting With #2970000
Use Pt# 7025930
Prior to #2970000
Use Pt# 7006413
BI-Series
Use Pt# 7025930
801
Use Regardless of Serial Number
$158.75

7016362
Condenser Fan Motor
Motor, Condenser SVCE
424, 315W
424
Use Prior to Serial #2191621
424-2
Starting With #2191621
Use Pt# 7026641
315W
Use Regardless of Serial Number
UC-24RO
Use Pt# 7026641
UC-24R
Use Pt# 7026641
UC-24B
Use Pt# 7026641
UC-24C
Use Pt# 7026641
$159.75

7026641
Condenser Fan Motor
Condenser Motor Assy
424-2, UC-24C, UC-24B, UC-24RO, UC-24R
424
Use Starting With Serial #2191621
NOTE: This Low Speed Panasonic Motor Package
Also Replaces Original Morrill Motor
$196.70

4200741
Condenser Fan Motor
Condenser Fan Motor
430, 561, 611, 632, 642, 650, 680, 690
430
Use Prior to Serial #1931384
Starting With #1931384
Use Pt# 4200740
561
Use From #1810000 to #M1914144/P1919759
Prior To #1810000 and Starting With
#M1914144/P1919759
Use Pt# 4200740
601F/601R
Use From #1810000 to #M1895814/P1926159
Prior To #1810000 and Starting With
#M1895814/P1926159
Use Pt# 4200740
611
Use From Serial #1810000 to #M1897614
Prior To #1810000 and Starting With
#M1897614
Use Pt# 4200740
NOTE: ALSO ORDER 7014653 FAN BLADE
632/642
Use From #1810000 to #M1914144/P1919759
Prior To #1810000 and Starting With
#M1914144/P1919759
Use Pt# 4200740
650
Use From #1810000 to #M1893764/P1929859
Prior To #1810000 and Starting With
#M1893764/P1929859
Use Pt# 4200740
680/690
Use From #1810000 to #M1914144/P1919759
Prior To #1810000 and Starting With
#M1914144/P1919759
Use Pt# 4200740
$186.90

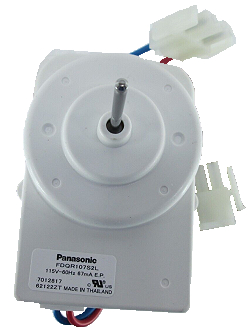

7025930
Condenser Fan Motor

Condenser Motor
IC-30R, IC-30FI, IT-30R, IT-30FI,
IT-30CI, IT-36R, IT-36CI, IW-30, IW-30R,
736TR, 736TF, 736TC/I, 648PRO, BI-Series

IC-30R, IC-30FI, IT-30R, IT-30FI,
IT-30CI, IT-36R, IT-36CI, IW-30, IW-30R
Use Regardless of Serial Number

736TR
Use Starting With Serial #2970000
Prior to #2970000
Use Pt# 7006413
736TF
Use Starting With Serial #2970000
Prior to #2970000
Use Pt# 7006413
736TC/I
Use Starting With Serial #2970000
Prior to #2970000
Use Pt# 7006413
BI-Series
Use Regardless of Serial Number
Also Order Fan Blade 7011465
648PRO
Use Regardless of Serial Number
Also Order Fan Blade 7011465
$136.70

7029366
Condenser Fan Motor
Condenser Motor Assy
700BC-3, 700BR-3, 700BF-3
Use Regardless of Serial Number
NOTE: Includes Fan Motor And Blade
$196.70

4203780
Condenser Fan Motor
Condenser Fan Motor Pkg, Slow Speed
700TF/I-2V
700TF/I-3V
Use Pt# 4200740
700TF/I-3
Use Pt# 4200740
$188.90

7006413
Condenser Fan Motor
Condenser Fan Motor
736TC/I-3, 736TR-3, 736TF, IC-27R, IC-27F
736
Use Prior to Serial #2970000
Starting With #2970000
Use Pt# 7025930
IC-27
Use Regardless of Serial Number
$166.90

7014653

7014653
Condenser Fan Blade
NOTE: If Replacing Blade Only on Units With
Gray Plastic Panasonic Motor Use Pt# 7011465
BI_Series
Use Pt# 7006971 And 7011465
WS-30
Use Pt# 7006971 And 7011465
$42.95

7011465
Condenser Fan Blade
700 Series, BI Series, WS30, 648PRO
NOTE: Used With Gray Plastic Panasonic Motor
Part number 7025930
If Replacing Blade on Units With Black
Morril Motor
Use Pt# 7006971 And 7014653
$52.65
